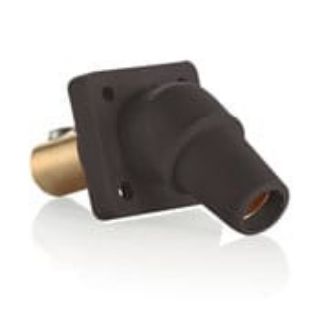

Actual Product May Vary From Image

16R28-E LEV

Name: 16R28-E LEV
Brand: Leviton Manufacturing
SKU: 16R28-E LEV
Availability: OutOfStock

Leviton® 16R28-E Single Pole Cam Receptacle Single Pole Receptacle, 600 VAC, 400 A, Double Set Screw Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R28-E

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

45 deg Cam Type Female Taper Nose

Description

Leviton® Single Pole Receptacle, Single Pole Cam Receptacle, 600 VAC, 400 A, Double Set Screw, Thermoplastic Vulcanizate Housing, NEMA 3R, Panel Mount, Black, 2.61 in L x 2.24 in H

Application

Commercial and Outdoor Applications

Standards

CSA 152105 | UL 1691 File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Shatter and crack proof high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect
High conductivity positive, vibration proof connection provided by cam design
Wide range of applications usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	Black
Connection Type:	Double Set Screw
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	2.61 in L x 2.24 in H
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Voltage Rating:	600 VAC
Wire Size:	1/0 to 4/0 AWG
