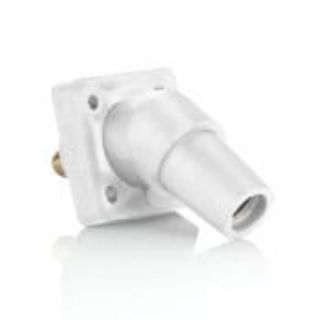

Actual Product May Vary From Image

16R30-W LEV

Name: 16R30-W LEV
Brand: Leviton Manufacturing
SKU: 16R30-W LEV
Availability: OutOfStock

Leviton® Rhino-Hide® 16R30-W 16 Series 90 deg Cam Type Female Taper Nose Single Pole Receptacle, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16R30-W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

90 deg Cam Type Female Taper Nose

Description

Rhino-Hide® single pole cam type receptacles are tough and reliable. They feature a UV-stabilized high performance TPV insulator that resists cracking and color fading, and a positive vibration-proof connection. They are available in 8 standard colors for easy phase identification.

Leviton® Rhino-Hide® Single Pole Receptacle, 90 deg Cam Type Female Taper Nose, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded/Stud, Brass Contact, Santoprene TPV Housing, NEMA 3R, Panel Mount, White, 1.79 in L x 2.24 in H

Application

Commercial and Outdoor Applications

Standards

CSA 152105 | UL 1691 File No. E13399

Features

Intermateable and compatible with competitive cam type products can be retrofitted to existing locations and power distribution systems
Shatter and crack proof high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Color coded insulating sleeves provide fast and easy phase identification
Self compensating for wear slit in male contact provides spring action for longer usage
Quick connect/disconnect
High conductivity positive, vibration proof connection provided by cam design
Wide range of applications usable with a wide range of cable and amperage ratings

Specifications

Amperage Rating:	400 A
Color:	White
Connection Type:	Threaded/Stud
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	1.79 in L x 2.24 in H
Housing Material:	Santoprene TPV
Mounting Type:	Panel
NEMA Rating:	NEMA 3R
Series:	16 Series
Voltage Rating:	600 VAC
Wire Size:	2 to 4/0 AWG
