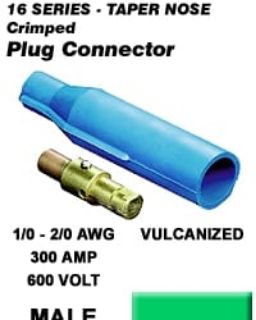

Actual Product May Vary From Image

16V22-G LEV

Name: 16V22-G LEV
Brand: Leviton Manufacturing
SKU: 16V22-G LEV
Availability: OutOfStock

Leviton® 16V22-G 1-Pole Cam Type Taper Nose Vulcanized Male Plug, 600 VAC, 300 A, 1/0 to 2/0 AWG Wire, Crimped Connection, NEMA 3R NEMA Rating

Manufacturer: Leviton Manufacturing

Manufacturer part number: 16V22-G

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Pole Cam Type Taper Nose Vulcanized

Description

The 16 series taper nose cam type devices are rated up to 400 A, making them the connectors of choice for power distribution applications such as concerts, sound stages, movie making, television productions, sporting events and conventions.

Leviton® Male Plug, 1-Pole Cam Type Taper Nose Vulcanized, Series: 16 Series, 600 VAC, 300 A, 1/0 to 2/0 AWG Wire, Crimped, Brass Contact, Neoprene Housing, NEMA 3R, Threaded Mount, 86 deg F, Green, 5.87 in L x 1.78 in H

Application

Commercial and Industrial Applications

Standards

UL Listed | CSA Certified

Features

Color coded connector insulator for quick, visual identification of circuit and phase connections
High conductivity positive, vibration proof connection provided by double cam design
Shatter and crack proof, high durometer thermoplastic vulcanizate (TPV) or neoprene rubber
Self-compensating for wear slit in male contact provides spring action for longer usage
Hard thermoplastic screw provides strength and durability
Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems

Specifications

Amperage Rating:	300 A
Color:	Green
Connection Type:	Crimped
Contact Material:	Brass
Country of Origin:	MX
Dimensions:	5.87 in L x 1.78 in H
Housing Material:	Neoprene
Mounting Type:	Threaded
NEMA Rating:	NEMA 3R
Series:	16 Series
Temperature Rating:	86 deg F
Voltage Rating:	600 VAC
Wire Size:	1/0 to 2/0 AWG
