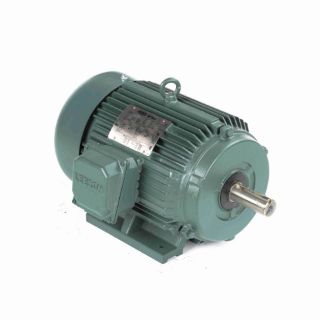

Picture of 170140.60 LEE
Actual Product May Vary From Image

170140.60 LEE

10 HP General Purpose Motor, 3 phase, 1800 RPM, 208-230/460 V, 215T Frame, TEFC
Manufacturer: Leeson Electric
Manufacturer part number: 170140.60
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 1
Loading...
Price on Request

Product Details

Features

Premium efficient ratings Inverter-rated; Continuous duty Class F insulation system – 140 frame and higher Class F insulation system – 140 frame and higher Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications Dynamically balanced rotors Torques exceed NEMA performance standards; UL recognized and CSA certified

Specifications

Assembly/Box Mounting:F1/F2 CAPABLE
C Dim (IN):19.61
CE:Y
Connection Drawing No:A-EE7308T
Country of Origin:China
CSA:Y
Current:27.0-25.0/12.5
DE Bearing Size:6308
DE Bearing Type:BALL
Duty:Continuous
Efficiency:91.7
Electrical Type:Squirrel Cage Inverter Rated
Enclosure Type:Totally Enclosed Fan Cooled
Frame Material:Cast Iron
Frame Size:215
Frame Suffix:T
Frame Type:215T
Frequency:60
HP:10
Insulation Class:F
IP Code:54
KVA Code:H
Max Ambient:40°C
Motor Orientation:HORIZONTAL
Mounting Type:Rigid base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6306
ODE Bearing Type:BALL
Outline Drawing No:16953660
Phases:3
Power Factor:81.6
Power Rating (HP):10
Power Rating (kW):7.5
Resistance Main:.216
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.375
Shaft Extension (IN):3.38
Shaft Type:T
Speed:1760
Speed Max:1760
Starting Type:Line Or Inverter
Type of Overload Protector:No
UL:Recognized
Voltage:208-230/460

Resources

Engineering DrawingSpec Sheet
