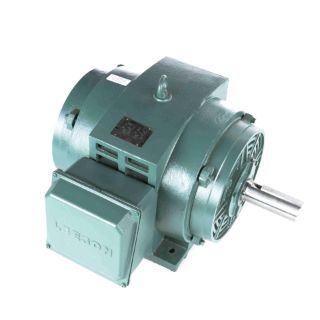

Actual Product May Vary From Image

170155.60 LEE

Name: 170155.60 LEE
Brand: Leeson Electric
SKU: 170155.60 LEE
Availability: OutOfStock

LEESON® Ultimate e® 170155.60 4-Pole Continuous-Duty AC Motor, DP Enclosure, 125 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 405T Frame, 1785 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 170155.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous-Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 125 hp, 208 to 230/460 VAC, 298 to 280/140 A, 60 Hz Frequency, 3 ph ph, 1785 rpm Speed, 1 Speed, DP Enclosure, 405T Frame, 2.88 in Dia x 7.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 368 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 34.25 in L x 22.99 in H Dimensions

Application

Pumps, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage inverter rated

Specifications

Amperage Rating:	298 to 280/140 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	34.25 in L x 22.99 in H
Enclosure Type:	DP
Frame:	405T
Frequency Rating:	60 Hz
Horsepower:	125 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.88 in Dia x 7.25 in L
Speed:	1785 rpm
Temperature Rating:	40 deg C
Torque Rating:	368 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
