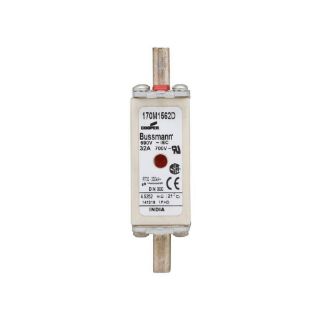

Actual Product May Vary From Image

170M1562D BSF

Name: 170M1562D BSF
Brand: Bussmann
SKU: 170M1562D BSF
Availability: OutOfStock

Bussmann 170M1562D Type T High Speed Square Body Fuse, 32 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M1562D

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Square Body Fuse, Type T, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 32 A, 690 VAC, 200 kAIC Interrupt, Class: gR, 45 to 1000 Hz, Din 43 620 Blade Terminal, Stud Mount, Square Body Type, Dual Element, Ceramic, 79 mm L x 21 mm W x 48 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
Low arc voltage, excellent DC performance, superior cycling capability, designated size 00

Specifications

Amperage Rating:	32 A
Body Size:	79 mm L x 21 mm W x 48 mm H
Body Type:	Square
Class:	gR
Element:	Dual
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Material:	Ceramic
Mounting Type:	Stud
Series:	170M
Terminal Type:	Din 43 620 Blade
Voltage Rating:	690 VAC
