170M1757 BSF

Name: 170M1757 BSF
Brand: Bussmann
SKU: 170M1757 BSF
Availability: OutOfStock

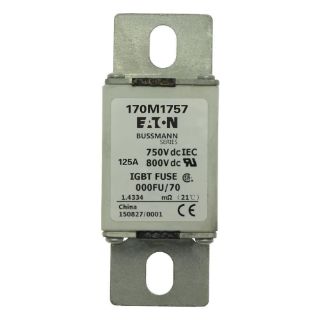

Bussmann 170M1757 High Speed Square Body Fuse, 125 A, 690 VAC, 200 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M1757

Availability: Expected Leadtime 53 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Square Body Fuse, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 125 A, 690 VAC, 200 kAIC Interrupt, Class: AR, Blade End Terminal, Square Body Type, 140 mm L x 101 mm W x 42 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEM, Utility - Substations, Utility Transmission and Distribution, IGBT Circuits and Semiconductor Protection

Standards

IEC Certified | RoHS Compliant | UL Listed

Specifications

Amperage Rating:	125 A
Body Size:	140 mm L x 101 mm W x 42 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 VAC
