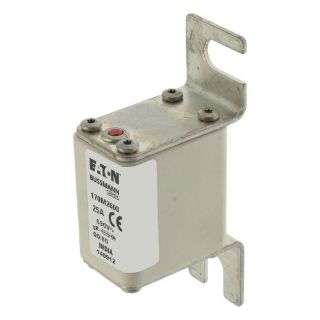

Actual Product May Vary From Image

170M2608 BSF

Name: 170M2608 BSF
Brand: Bussmann
SKU: 170M2608 BSF
Availability: OutOfStock

Bussmann 170M2608 Visual High Speed Square Body Fuse, 25 A, 690/700 VAC, 200 kAIC Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2608

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Visual

Description

Bussmann High Speed Square Body Fuse, Visual, Series: 170M, Indicating/Non-Indicating: Indicating, 25 A, 690/700 VAC, 200 kAIC Interrupt, Class: gR, Blade End Terminal, DIN 43 620 Blade Mount, Square Body Type, 100 mm L x 30 mm W x 51 mm H Body Size

Application

Critical Power, Electrical Assemblies and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL File No. E125085, JFHR2 Recognized

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43653 bolted tags high speed fuse

Specifications

Amperage Rating:	25 A
Body Size:	100 mm L x 30 mm W x 51 mm H
Body Type:	Square
Class:	gR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	DIN 43 620 Blade
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690/700 VAC
