170M2611 BSF

Name: 170M2611 BSF
Brand: Bussmann
SKU: 170M2611 BSF
Availability: OutOfStock

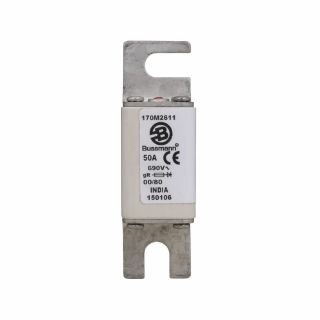

Bussmann 170M2611 Square Body Type T High Speed Fuse, 50 A, 690 V, 200 kA Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2611

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type T

Description

Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 50 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	50 A
Body Size:	100 mm L x 30 mm W x 51 mm H
Body Type:	Square
Class:	gR
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Busbar
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
