Actual Product May Vary From Image

170M2659 BSF

Name: 170M2659 BSF
Brand: Bussmann
SKU: 170M2659 BSF
Availability: OutOfStock

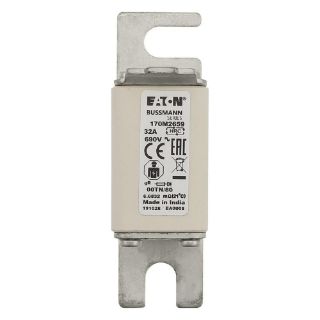

Bussmann 170M2659 Semi-Conductor High Speed Fuse, 32 A, 690 V, 200 kA Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2659

Availability: Expected Leadtime 49 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 32 A, 690 V, 200 kA Interrupt, Class: gR, Blade End Terminal, DIN 43 620 Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters and Rectifiers

Standards

CE Marking | IEC Certified | RoHS Compliant | UL Listed

Features

7 W power loss

Specifications

Amperage Rating:	32 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	gR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	DIN 43 620
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
