170M2660 BSF

Name: 170M2660 BSF
Brand: Bussmann
SKU: 170M2660 BSF
Availability: OutOfStock

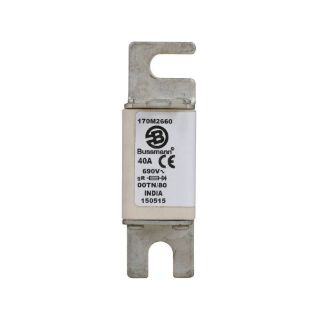

Bussmann 170M2660 High Speed Fuse, 40 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M2660

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Description

Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 40 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Blade End x Blade End Terminal, DIN 43 620 Blade Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Critical Power, Industrial Facilities and Factory Facilities, Safety and Security Systems, Electrical Assemblies, Panels and EOEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

9 W power loss

Specifications

Amperage Rating:	40 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	gR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	DIN 43 620 Blade
Terminal Type:	Blade End x Blade End
Voltage Rating:	690 VAC
