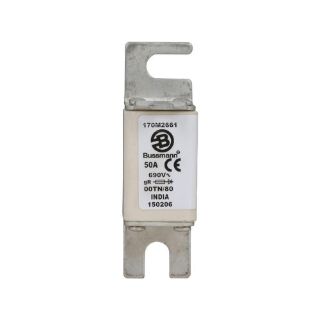

Picture of 170M2661 BSF
Actual Product May Vary From Image

170M2661 BSF

Bussmann 170M2661 Type TN/80/T High Speed Square Body Fuse, 50 A, 690 VAC, 200 kAIC Interrupt, Class: gR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M2661
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Type TN/80/T

Description

Bussmann High Speed Square Body Fuse, Type TN/80/T, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 50 A, 690 VAC, 200 kAIC Interrupt, Class: gR, 45 to 1000 Hz, Blade End Terminal, DIN 43 620 Blade Mount, Square Body Type, Ceramic, 100 mm L x 30 mm W x 51 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CCC Certified | CE Certified | CSA Class 53787 | CSA File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL JFHR2 | UL File No. E125085 | UL Recognized

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability

Specifications

Amperage Rating:50 A
Body Size:100 mm L x 30 mm W x 51 mm H
Body Type:Square
Class:gR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kAIC
Material:Ceramic
Mounting Type:DIN 43 620 Blade
Series:170M
Terminal Type:Blade End
Voltage Rating:690 VAC
