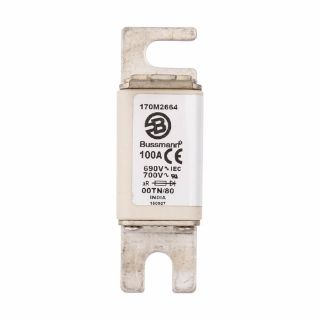

Picture of 170M2664 BSF
Actual Product May Vary From Image

170M2664 BSF

Bussmann 170M2664 Type TN/80/T High Speed Fuse, 100 A, 690 V, 200 kA Interrupt, Class: AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M2664
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Type TN/80/T

Description

Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 100 A, 690 V, 200 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Stud Mount, Square Body Type, Ceramic, 100 mm L x 30 mm W x 51 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems

Standards

CCC Certified | CE Certified | CSA 53787 | CSA File No. File 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL File No. E125085 | UL Guide JFHR2 | UL Recognized

Features

  • Excellent DC performance
  • Low arc voltage and low energy let through
  • Low watts loss
  • Superior cycling capability

Specifications

Amperage Rating:100 A
Body Size:100 mm L x 30 mm W x 51 mm H
Body Type:Square
Class:AR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Stud
Series:170M
Terminal Type:Blade
Voltage Rating:690 V
