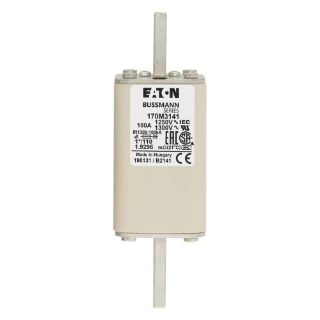

Actual Product May Vary From Image

170M3141 BSF

Name: 170M3141 BSF
Brand: Bussmann
SKU: 170M3141 BSF
Availability: OutOfStock

Bussmann 170M3141 High Speed Semiconductor Fuse, 100 A, 1250 VAC, 100 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3141

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

High Speed

Description

Bussmann Semiconductor Fuse, High Speed, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 100 A, 1250 VAC, 100 kA Interrupt, Class: AR, DIN 43 620 Blade Mount, Body Type: Square, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications

Standards

UL Listed | IEC Rated | CE Certified

Features

Package Type: Standard
Watt Losses: 30 W
Clearing (I2T): Clearing at 1000V: 4450 , Clearing at 1250V: 5950
Width: 0.315 in
Weight: 1.6456 lbs
Length: 5.433 in
Pre Arc (I2T): 750
Height: 2.087 in

Specifications

Amperage Rating:	100 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Mounting Type:	DIN 43 620 Blade
Series:	170M
Voltage Rating:	1250 VAC
