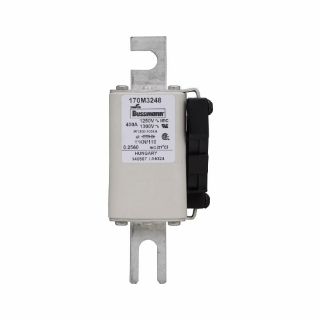

Actual Product May Vary From Image

170M3248 BSF

Name: 170M3248 BSF
Brand: Bussmann
SKU: 170M3248 BSF
Availability: OutOfStock

Bussmann 170M3248 Type K High Speed Square Body Fuse, 400 A, 690/700 VAC, 100 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3248

Availability: Expected Leadtime 49 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type K

Description

Bussmann High Speed Square Body Fuse, Type K, Series: 170M, Indicating/Non-Indicating: Indicating, 400 A, 690/700 VAC, 100 kAIC Interrupt, Class: AR, DIN 43 620/DIN 43 653 Blade Terminal, Stud Mount, Square Body Type, 138 mm L x 45 mm W x 60 mm H Body Size

Application

Critical Power, Electrical Assemblies and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC Certified | IEC 60269 Part 4 | RoHS Compliant | UL Recognized

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43653 bolted tags high speed fuse

Specifications

Amperage Rating:	400 A
Body Size:	138 mm L x 45 mm W x 60 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100 kAIC
Mounting Type:	Stud
Series:	170M
Terminal Type:	DIN 43 620/DIN 43 653 Blade
Voltage Rating:	690/700 VAC
