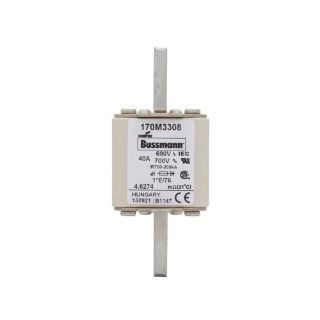

Actual Product May Vary From Image

170M3308 BSF

Name: 170M3308 BSF
Brand: Bussmann
SKU: 170M3308 BSF
Availability: OutOfStock

Bussmann 170M3308 170M Type T High Speed Fuse, 40 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Square French Body

Manufacturer: Bussmann

Manufacturer part number: 170M3308

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Fuse, Type T, Series: 170M, Indicating, 40 A, 690/700 VAC, 200 kA Interrupt, Class: AR, Blade/Bolted Down Terminal, Stud Mounting, Square French Body, 102 mm L x 59 mm W x 45 mm H Body

Application

DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter

Standards

UL File No. E125085, JFHR2 Recognized | IEC 60269 Part 4 | CE Certified

Features

Excellent DC performance
Low arc voltage and low energy let-through (I2t)
Low wattage loss
Superior cycling capability
690 VAC for IEC, 700 VAC for UL

Specifications

Amperage Rating:	40 A
Body Size:	102 mm L x 59 mm W x 45 mm H
Body Type:	Square French
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade/Bolted Down
Voltage Rating:	690/700 VAC
