Actual Product May Vary From Image

170M3366 BSF

Name: 170M3366 BSF
Brand: Bussmann
SKU: 170M3366 BSF
Availability: OutOfStock

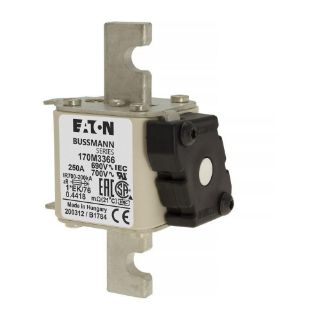

Bussmann 170M3366 Semi-Conductor High Speed Fuse, 250 A, 1250/1300 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3366

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 250 A, 1250/1300 V, 200 kA Interrupt, Class: AR, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters, Safety and Security Systems

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

40 W power loss

Specifications

Amperage Rating:	250 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Voltage Rating:	1250/1300 V
