Actual Product May Vary From Image

170M3414 BSF

Name: 170M3414 BSF
Brand: Bussmann
SKU: 170M3414 BSF
Availability: OutOfStock

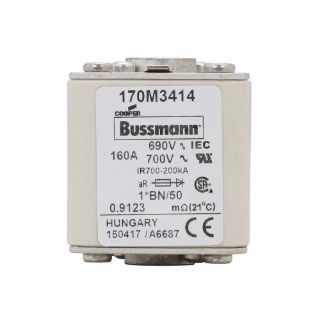

Bussmann 170M3414 Semi-Conductor High Speed Fuse, 160 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3414

Availability: Expected Leadtime 29 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, 160 A, 690 V, 200 kA Interrupt, Class: aR, Flush Mounting, Square Body, 51 mm L x 45 mm W x 59 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | CSA Certified | IEC 60269 | RoHS Compliant | UL Listed

Features

Low arc voltage
Excellent DC performance
Superior cycling capability
Designated size 1

Specifications

Amperage Rating:	160 A
Body Size:	51 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	aR
Interrupt Rating:	200 kA
Mounting Type:	Flush
Series:	170M
Voltage Rating:	690 V
