Actual Product May Vary From Image

170M3416 BSF

Name: 170M3416 BSF
Brand: Bussmann
SKU: 170M3416 BSF
Availability: OutOfStock

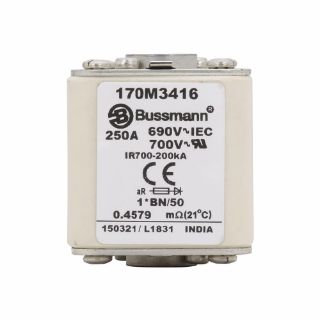

Bussmann 170M3416 Semi-Conductor High Speed Fuse, 250 A, 690/700 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3416

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 250 A, 690/700 V, 200 kA Interrupt, Class: AR, Flush Mount, Square Body Type, 51 mm L x 45 mm W x 59 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

Features

40 W power loss

Specifications

Amperage Rating:	250 A
Body Size:	51 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Voltage Rating:	690/700 V
