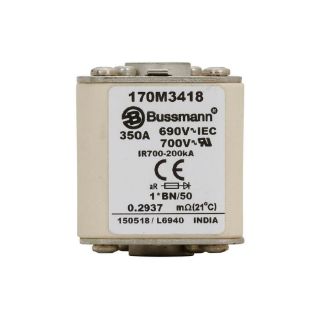

Actual Product May Vary From Image

170M3418 BSF

Name: 170M3418 BSF
Brand: Bussmann
SKU: 170M3418 BSF
Availability: OutOfStock

Bussmann 170M3418 Semi-Conductor High Speed Fuse, 350 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3418

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 350 A, 690 V, 200 kA Interrupt, Class: aR, Flush Mounting, Square Body, 51 mm L x 45 mm W x 59 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters and Rectifiers

Standards

CE Marking | CSA Certified | IEC 60269 | RoHS Compliant | UL Listed

Features

Low arc voltage
Excellent DC performance
Superior cycling capability
Designated size 1
55 W power loss

Specifications

Amperage Rating:	350 A
Body Size:	51 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Series:	170M
Voltage Rating:	690 V
