Picture of 170M3465 BSF
Actual Product May Vary From Image

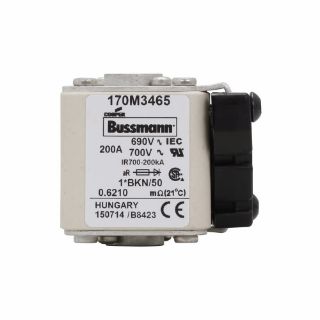

170M3465 BSF

Bussmann 170M3465 Type BKN/K High Speed Fuse, 200 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M3465
Availability: Expected Leadtime 29 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Type BKN/K

Description

Bussmann High Speed Fuse, Type BKN/K, Series: 170M, Non-Indicating, 200 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, Flush Mounting, Square Body, Ceramic, 51 mm L x 45 mm W x 59 mm H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CCC Certified | CE Marking | CSA 53787 | CSA Certified File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL Listed File No. E125085 | UL Listed Guide JFHR2

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
  • Designated size 1

Specifications

Amperage Rating:200 A
Body Size:51 mm L x 45 mm W x 59 mm H
Body Type:Square
Class:aR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Flush
Series:170M
Terminal Type:Blade
Voltage Rating:690 V
