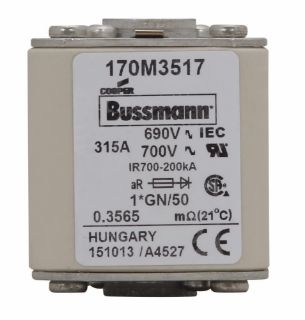

Actual Product May Vary From Image

170M3517 BSF

Name: 170M3517 BSF
Brand: Bussmann
SKU: 170M3517 BSF
Availability: OutOfStock

Bussmann 170M3517 High Speed Semiconductor Fuse, 315 A, 1300 VAC, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3517

Availability: Expected Leadtime 49 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

High Speed

Description

Bussmann Semiconductor Fuse, High Speed, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 315 A, 1300 VAC, 200 kA Interrupt, Class: AR, Flush Mount, Body Type: Square, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

DC Common Bus, DC Drives, Power Converters and Rectifiers Applications

Standards

UL Recognized | IEC Certified | CE Certified

Features

Package Type: Standard
Watt Losses: 50 W
Clearing (I2T): Clearing at 660V: 46500
Width: 0.315 in
Weight: 1.6456 lbs
Length: 5.433 in
Pre Arc (I2T): 7000
Height: 2.087 in

Specifications

Amperage Rating:	315 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Series:	170M
Voltage Rating:	1300 VAC
