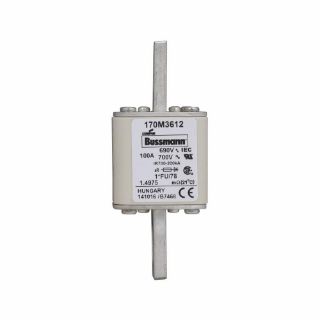

Actual Product May Vary From Image

170M3612 BSF

Name: 170M3612 BSF
Brand: Bussmann
SKU: 170M3612 BSF
Availability: OutOfStock

Bussmann 170M3612 Square Body US Style High Speed Fuse, 100 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3612

Availability: Expected Leadtime 29 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body US Style

Description

Bussmann High Speed Fuse, Square Body US Style, Series: 170M, Non-Indicating, 100 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, Stud Mounting, Square Body, 110 mm L x 59 mm W x 45 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | IEC 60269 Part 4 | RoHS Compliant | UL Listed

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	100 A
Body Size:	110 mm L x 59 mm W x 45 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
