170M3659 BSF

Name: 170M3659 BSF
Brand: Bussmann
SKU: 170M3659 BSF
Availability: OutOfStock

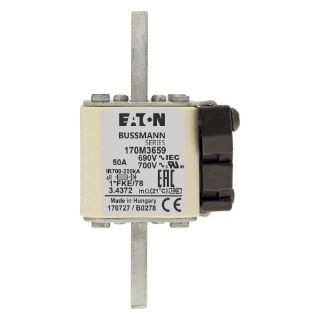

Bussmann 170M3659 Semi-Conductor High Speed Fuse, 50 A, 690/700 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3659

Availability: Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 50 A, 690/700 V, 200 kA Interrupt, Class: AR, Blade Terminal, Square Body Type, 110 mm L x 45 mm W x 59 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers, Safety and Security Systems

Standards

Features

11 W power loss

Specifications

Amperage Rating:	50 A
Body Size:	110 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Terminal Type:	Blade
Voltage Rating:	690/700 V
