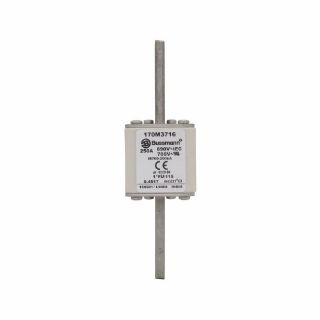

Actual Product May Vary From Image

170M3716 BSF

Name: 170M3716 BSF
Brand: Bussmann
SKU: 170M3716 BSF
Availability: OutOfStock

Bussmann 170M3716 Square Body Type FU/115 US Style High Speed Fuse, 250 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3716

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type FU/115 US Style

Description

Bussmann High Speed Fuse, Square Body Type FU/115 US Style, Series: 170M, Non-Indicating, 250 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 148 mm L x 45 mm W x 59 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Low arc voltage, excellent DC performance, superior cycling capability, designated size 1

Specifications

Amperage Rating:	250 A
Body Size:	148 mm L x 45 mm W x 59 mm H
Body Type:	Square
Class:	aR
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
