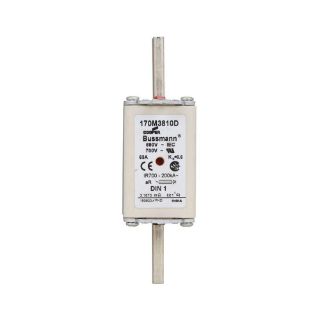

Actual Product May Vary From Image

170M3810D BSF

Name: 170M3810D BSF
Brand: Bussmann
SKU: 170M3810D BSF
Availability: OutOfStock

Bussmann 170M3810D Square Body Type T High Speed Fuse, 63 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M3810D

Availability: Expected Leadtime 29 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type T

Description

Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Indicating, 63 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 135 mm L x 45 mm W x 58 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC 60269 Part 4 | UL E125085 | UL Recognized

Features

Excellent DC performance
Low arc voltage and low energy let through
Low watts loss
Superior cycling capability
Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters

Specifications

Amperage Rating:	63 A
Body Size:	135 mm L x 45 mm W x 58 mm H
Body Type:	Square
Class:	aR
Country of Origin:	IN
Element:	Dual
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	DIN 43 620 Blade
Series:	170M
Terminal Type:	DIN 43 620 Blade
Voltage Rating:	690 V
