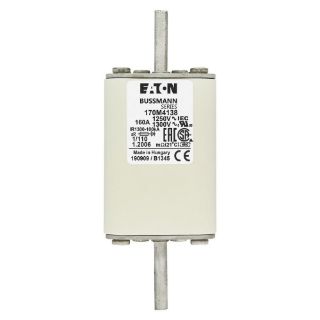

Picture of 170M4138 BSF
Actual Product May Vary From Image

170M4138 BSF

Bussmann 170M4138 Visual High Speed Square Body Fuse, 160 A, 1250/1300 VAC, 100 kAIC Interrupt, Class: AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M4138
Availability: Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Visual

Description

Bussmann High Speed Square Body Fuse, Visual, Series: 170M, Indicating/Non-Indicating: Indicating, 160 A, 1250/1300 VAC, 100 kAIC Interrupt, Class: AR, DIN 43 620/DIN 43 653 Blade Terminal, Stud Mount, Square Body Type, 138 mm L x 53 mm W x 66 mm H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Class 53787, File No. 1422-30 | IEC Certified | IEC 60269 Part 4 | RoHS Compliant | UL File No. E125085, JFHR2 Recognized | UL Recognized

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
  • Square body DIN 43653 bolted tags high speed fuse

Specifications

Amperage Rating:160 A
Body Size:138 mm L x 53 mm W x 66 mm H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Indicating
Interrupt Rating:100 kAIC
Mounting Type:Stud
Series:170M
Terminal Type:DIN 43 620/DIN 43 653 Blade
Voltage Rating:1250/1300 VAC
