Actual Product May Vary From Image

170M4186 BSF

Name: 170M4186 BSF
Brand: Bussmann
SKU: 170M4186 BSF
Availability: OutOfStock

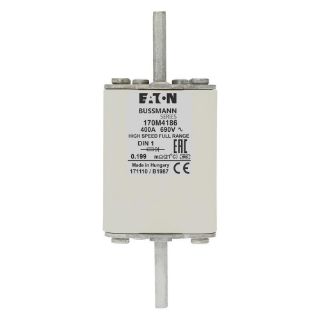

Bussmann 170M4186 Type T High Speed Fuse, 400 A, 690 V, 200 kA Interrupt, Class: gR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4186

Availability: Expected Leadtime 49 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Fuse, Type T, Series: 170M, Indicating, 400 A, 690 V, 200 kA Interrupt, Class: gR, Blade End x Din 43-620 Blade End Terminal, Stud Mounting, Square Body, 135 mm L x 52 mm W x 66 mm H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CE Marking | IEC 60269 Part 4 | RoHS Compliant | UL Listed

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43620 blade style high speed fuse

Specifications

Amperage Rating:	400 A
Body Size:	135 mm L x 52 mm W x 66 mm H
Body Type:	Square
Class:	gR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade End x Din 43-620 Blade End
Voltage Rating:	690 V
