170M4691 BSF

Name: 170M4691 BSF
Brand: Bussmann
SKU: 170M4691 BSF
Availability: OutOfStock

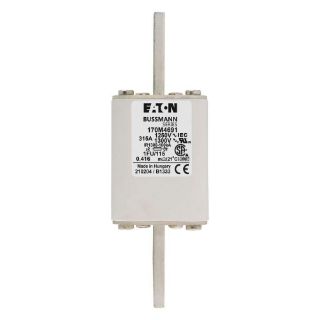

Bussmann 170M4691 Type FU/115 Style High Speed Fuse, 315 A, 1000 VAC, 100 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4691

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type FU/115 Style

Description

Bussmann High Speed Fuse, Type FU/115 Style, Series: 170M, Non-Indicating, 315 A, 1000 VAC, 100 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Flush Mount, Square Body Type, Ceramic, 160 mm L x 53 mm W x 69 mm H Body Size

Application

DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications

Standards

UL Listed | CSA Certified | CCC Certified | CE Certified | IEC 60269 Part 4

Features

Excellent DC performance
Low arc voltage and low energy let through
Low watts loss
Superior cycling capability

Specifications

Amperage Rating:	315 A
Body Size:	160 mm L x 53 mm W x 69 mm H
Body Type:	Square
Class:	AR
Country of Origin:	HU
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Material:	Ceramic
Mounting Type:	Flush
Series:	170M
Terminal Type:	Blade
Voltage Rating:	1000 VAC
