Actual Product May Vary From Image

170M4823 BSF

Name: 170M4823 BSF
Brand: Bussmann
SKU: 170M4823 BSF
Availability: OutOfStock

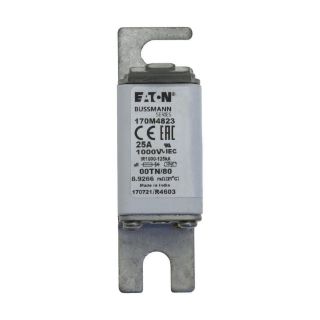

Bussmann 170M4823 Square Body Type T High Speed Fuse, 25 A, 1000 V, 125 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4823

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Square Body Type T

Description

Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Indicating, 25 A, 1000 V, 125 kA Interrupt, Class: aR, Blade End x Din 43-620 Blade End Terminal, Stud Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43653 bolted tags high speed fuse

Specifications

Amperage Rating:	25 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	125 kA
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade End x Din 43-620 Blade End
Voltage Rating:	1000 V
