Actual Product May Vary From Image

170M4866D BSF

Name: 170M4866D BSF
Brand: Bussmann
SKU: 170M4866D BSF
Availability: OutOfStock

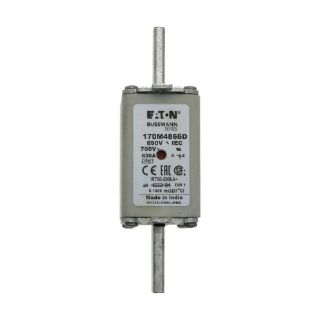

Bussmann 170M4866D Type T High Speed Square Body Fuse, 630 A, 1250/1300 VAC, 200 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4866D

Availability: Expected Leadtime 29 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Square Body Fuse, Type T, Series: 170M, Indicating/Non-Indicating: Indicating, 630 A, 1250/1300 VAC, 200 kAIC Interrupt, Class: AR, Din 43 620 Blade Terminal, DIN 43 620 Blade Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Class File No. 1422-30 | IEC 60269 Part 4 | UL File No. E125085, JFHR2 Recognized

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43620 blade style high speed fuse
Dual indicator fuse

Specifications

Amperage Rating:	630 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	DIN 43 620 Blade
Series:	170M
Terminal Type:	Din 43 620 Blade
Voltage Rating:	1250/1300 VAC
