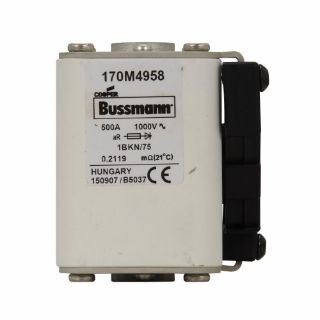

Actual Product May Vary From Image

170M4958 BSF

Name: 170M4958 BSF
Brand: Bussmann
SKU: 170M4958 BSF
Availability: OutOfStock

Bussmann 170M4958 Type K High Speed Square Body Fuse, 500 A, 1250/1300 VAC, 150 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M4958

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type K

Description

Bussmann High Speed Square Body Fuse, Type K, Series: 170M, Indicating/Non-Indicating: Indicating, 500 A, 1250/1300 VAC, 150 kAIC Interrupt, Class: AR, Threaded Socket Terminal, Flush Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL Recognized

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	500 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	150 kAIC
Mounting Type:	Flush
Series:	170M
Terminal Type:	Threaded Socket
Voltage Rating:	1250/1300 VAC
