Picture of 170M5149 BSF
Actual Product May Vary From Image

170M5149 BSF

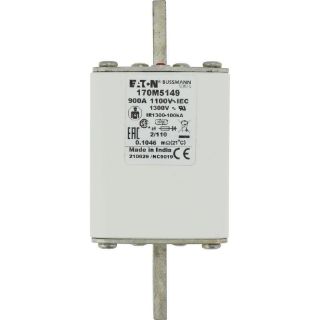

Bussmann 170M5149 Visual High Speed Square Body Fuse, 900 A, 690/700 VAC, 100 kAIC Interrupt, Class: AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M5149
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Visual

Description

Bussmann High Speed Square Body Fuse, Visual, Series: 170M, Indicating/Non-Indicating: Indicating, 900 A, 690/700 VAC, 100 kAIC Interrupt, Class: AR, DIN 43 620/DIN 43 653 Blade Terminal, Stud Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Critical Power, Electrical Assemblies and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Class 53787, File No. 1422-30 | IEC Certified | IEC 60269 Part 4 | RoHS Compliant | UL File No. E125085, JFHR2 Recognized | UL Recognized

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
  • Square body DIN 43653 bolted tags high speed fuse

Specifications

Amperage Rating:900 A
Body Size:5.433 in L x 0.315 in W x 2.087 in H
Body Type:Square
Class:AR
Indicating/Non-Indicating:Indicating
Interrupt Rating:100 kAIC
Mounting Type:Stud
Series:170M
Terminal Type:DIN 43 620/DIN 43 653 Blade
Voltage Rating:690/700 VAC
