170M5150 BSF

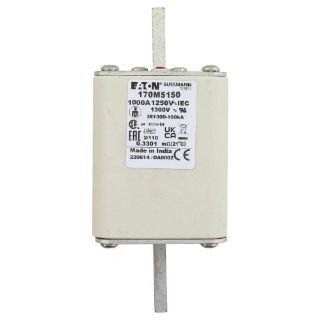

Picture of 170M5150 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M5150
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,451.97 / EA

Description

Brand Name

Bussmann

Type

Square Body Visual

Description

Bussmann High Speed Fuse, Square Body Visual, Series: 170M, Indicating, 1000 A, 1100 V, 100 kA Interrupt, Class: aR, DIN 43 620/DIN 43 653 Blade Terminal, Stud Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | CSA Class 53787 File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL JFHR2 File No. E125085 | UL Listed

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
  • Square body DIN 43653 bolted tags high speed fuse

Specifications

Amperage Rating:1000 A
Body Size:5.433 in L x 0.315 in W x 2.087 in H
Body Type:Square
Class:aR
Indicating/Non-Indicating:Indicating
Interrupt Rating:100 kA
Mounting Type:Stud
Series:170M
Terminal Type:DIN 43 620/DIN 43 653 Blade
Voltage Rating:1100 V
