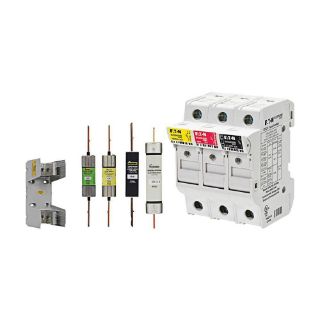

Actual Product May Vary From Image

170M5511 BSF

Name: 170M5511 BSF
Brand: Bussmann
SKU: 170M5511 BSF
Availability: OutOfStock

Bussmann 170M5511 Visual High Speed Fuse, 550 A, 690/700 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M5511

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Visual

Description

Bussmann High Speed Fuse, Visual, Series: 170M, Indicating/Non-Indicating: Indicating, 550 A, 690/700 V, 200 kA Interrupt, Class: AR, Threaded Socket Terminal, Flush Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL Recognized

Features

Excellent DC performance
Low arc voltage and low energy let through
Low wattage loss
Superior cycling capability

Specifications

Amperage Rating:	550 A
Body Size:	5.433 in L x 0.315 in W x 2.087 in H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Mounting Type:	Flush
Series:	170M
Terminal Type:	Threaded Socket
Voltage Rating:	690/700 V
