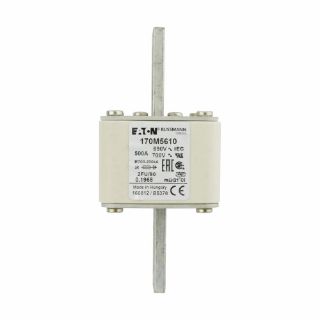

Picture of 170M5610 BSF
Actual Product May Vary From Image

170M5610 BSF

Bussmann 170M5610 Type FU US Style High Speed Fuse, 500 A, 690 VAC, 200 kA Interrupt, Class: aR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M5610
Availability: Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Type FU US Style

Description

Bussmann High Speed Fuse, Type FU US Style, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 500 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, Stud Mount, Square Body, Ceramic, 135 mm L x 61 mm W x 77 mm H Body Size

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

CCC Certified | CE Marking | CSA 53787 | CSA Certified File No. 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL Listed File No. E125085

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability

Specifications

Amperage Rating:500 A
Body Size:135 mm L x 61 mm W x 77 mm H
Body Type:Square
Class:aR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Stud
Series:170M
Terminal Type:Blade End
Voltage Rating:690 VAC
