170M5698 BSF

Name: 170M5698 BSF
Brand: Bussmann
SKU: 170M5698 BSF
Availability: OutOfStock

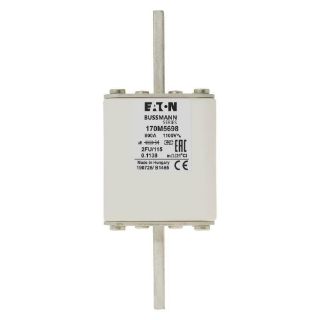

Bussmann 170M5698 Semi-Conductor High Speed Fuse, 800 A, 1100 V, 100 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M5698

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 800 A, 1100 V, 100 kA Interrupt, Class: aR, Square Body, 160 mm L x 61 mm W x 77 mm H Body

Application

Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications

Standards

CE Marking | CSA Certified | IEC 60269 | RoHS Compliant | UL Listed

Features

Low arc voltage
Excellent DC performance
Superior cycling capability
Designated size 2
120 W power loss

Specifications

Amperage Rating:	800 A
Body Size:	160 mm L x 61 mm W x 77 mm H
Body Type:	Square
Class:	aR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Series:	170M
Voltage Rating:	1100 V
