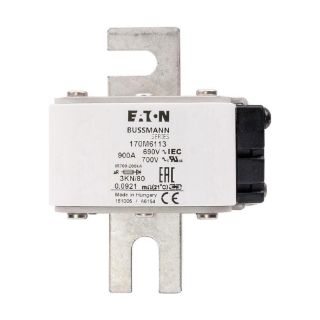

Actual Product May Vary From Image

170M6113 BSF

Name: 170M6113 BSF
Brand: Bussmann
SKU: 170M6113 BSF
Availability: OutOfStock

Bussmann 170M6113 Semi-Conductor High Speed Fuse, 900 A, 690/700 V, 200 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6113

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 900 A, 690/700 V, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mount, Square Body Type, 109 mm L x 76 mm W x 90 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers Applications, Safety and Security Systems

Standards

Features

Package Type: Standard
Clearing (I2T): Clearing at 660V: 670000
Connection Type: Blade End x Blade End
Width: 3.313 in
Weight: 1.892 lbs
Length: 2.75 in
Clearing Loss: 120
Pre Arc (I2T): Current pre-arc: 100000
Height: 4.186 in

Specifications

Amperage Rating:	900 A
Body Size:	109 mm L x 76 mm W x 90 mm H
Body Type:	Square
Class:	AR
Country of Origin:	HU
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Terminal Type:	Blade
Voltage Rating:	690/700 V
