170M6151 BSF

Name: 170M6151 BSF
Brand: Bussmann
SKU: 170M6151 BSF
Availability: OutOfStock

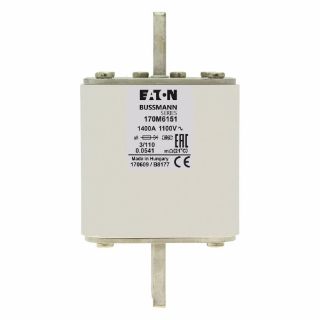

Bussmann 170M6151 Type 110 High Speed Fuse, 1400 A, 1100 V, 100 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6151

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type 110

Description

Bussmann High Speed Fuse, Type 110, Series: 170M, Indicating, 1400 A, 1100 V, 100 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 139 mm L x 76 mm W x 76 mm H Body

Application

Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power

Standards

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Designated size 3

Specifications

Amperage Rating:	1400 A
Body Size:	139 mm L x 76 mm W x 76 mm H
Body Type:	Square
Class:	aR
Country of Origin:	IN
Frequency Rating:	45 to 1000 Hz
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100 kA
Material:	Ceramic
Mounting Type:	DIN 43-653 Stud
Series:	170M
Terminal Type:	Blade
Voltage Rating:	1100 V
