Actual Product May Vary From Image

170M6246 BSF

Name: 170M6246 BSF
Brand: Bussmann
SKU: 170M6246 BSF
Availability: OutOfStock

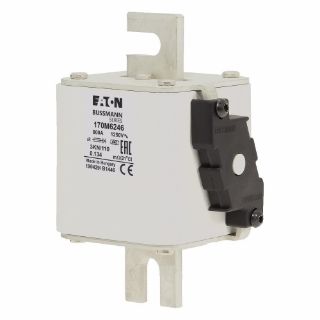

Bussmann 170M6246 Semi-Conductor High Speed Fuse, 800 A, 690/700 V, 100 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6246

Availability: Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 800 A, 690/700 V, 100 kA Interrupt, Class: AR, Stud Mount, Square Body Type, 139 mm L x 76 mm W x 90 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems

Standards

Features

125 W power loss

Specifications

Amperage Rating:	800 A
Body Size:	139 mm L x 76 mm W x 90 mm H
Body Type:	Square
Class:	AR
Country of Origin:	HU
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Mounting Type:	Stud
Voltage Rating:	690/700 V
