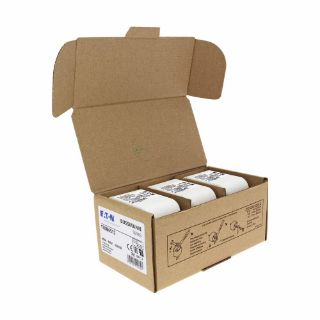

Picture of 170M6513 BSF
Actual Product May Vary From Image

170M6513 BSF

Bussmann 170M6513 Type G High Speed Fuse, 900 A, 690 V, 200 kA Interrupt, Class: AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M6513
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Type

Type G

Description

Bussmann High Speed Fuse, Type G, Series: 170M, Indicating/Non-Indicating: Indicating, 900 A, 690 V, 200 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Flush Mount, Square Body Type, Ceramic, 53 mm L x 76 mm W x 92 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters, Safety and Security Systems

Standards

CCC Certified | CE Certified | CSA 53787 | CSA File No. File 1422-30 | IEC 60269 Part 4 | RoHS Compliant | UL File No. E125085 | UL Guide JFHR2 | UL Recognized

Features

  • Excellent DC performance
  • Low arc voltage and low energy let through
  • Low watts loss
  • Superior cycling capability
  • Designated size 3

Specifications

Amperage Rating:900 A
Body Size:53 mm L x 76 mm W x 92 mm H
Body Type:Square
Class:AR
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Flush
Series:170M
Terminal Type:Blade
Voltage Rating:690 V
