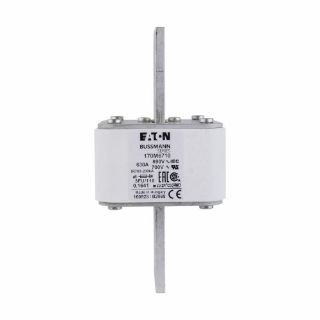

170M6710 BSF

Name: 170M6710 BSF
Brand: Bussmann
SKU: 170M6710 BSF
Availability: OutOfStock

Bussmann 170M6710 Semi-Conductor High Speed Fuse, 630 A, 690 V, 200 kA Interrupt, Class: aR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6710

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

High speed fuses, 630 A, DC common bus, DC drives, power converters/rectifiers, AR, blade end X blade end, 200 kA RMS symmetrical, square body, US style -FU/115 without indicator, 1000 VAC (IEC), 105 W, IEC rated, UL recognized, 630 A RMS, 3.

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, 630 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, Square Body, 6 in L x 2-7/8 in W x 2-7/8 in H Body

Application

Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factories, Safety and Security Systems and Critical Power Applications

Standards

CE Marking | IEC Certified | RoHS Compliant | UL Listed

Specifications

Amperage Rating:	630 A
Body Size:	6 in L x 2-7/8 in W x 2-7/8 in H
Body Type:	Square
Class:	aR
Country of Origin:	HU
Interrupt Rating:	200 kA
Series:	170M
Terminal Type:	Blade End
Voltage Rating:	690 V
