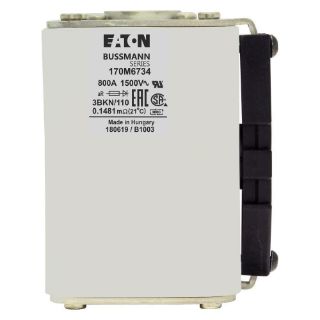

Actual Product May Vary From Image

170M6742 BSF

Name: 170M6742 BSF
Brand: Bussmann
SKU: 170M6742 BSF
Availability: OutOfStock

Bussmann 170M6742 170M Type K US Style High Speed Fuse, 500 A, 1250/1300 VAC, 100 kA Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6742

Availability: Expected Leadtime 35 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type K US Style

Description

Bussmann High Speed Fuse, Type K US Style, Series: 170M, Indicating, 500 A, 1250/1300 VAC, 100 kA Interrupt, Class: AR, Blade/Bolted Down Terminal, Stud Mounting, Square Body, 159 mm L x 76 mm W x 92 mm H Body

Application

DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter

Standards

IEC 60269 Part 4 | CE Certified

Features

Excellent DC performance
Low arc voltage and low energy let-through (I2t)
Low wattage loss
Superior cycling capability
1250 VAC for IEC, 1300 VAC for UL

Specifications

Amperage Rating:	500 A
Body Size:	159 mm L x 76 mm W x 92 mm H
Body Type:	Square
Class:	AR
Country of Origin:	DK
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100 kA
Mounting Type:	Stud
Series:	170M
Terminal Type:	Blade/Bolted Down
Voltage Rating:	1250/1300 VAC
