170M6809D BSF

Name: 170M6809D BSF
Brand: Bussmann
SKU: 170M6809D BSF
Availability: OutOfStock

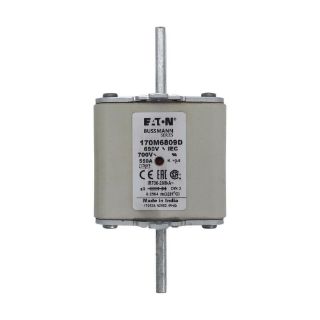

Bussmann 170M6809D Semi-Conductor High Speed Fuse, 550 A, 690 V, 200 kA Interrupt, Class: AR

Manufacturer: Bussmann

Manufacturer part number: 170M6809D

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Semi-Conductor

Description

Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 550 A, 690 V, 200 kA Interrupt, Class: AR, DIN 43 620 Blade Terminal, 150 mm L x 76 mm W x 88 mm H Body Size

Application

Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems

Standards

CE Certified | IEC 60269 | UL Listed | UL Recognized

Features

44 W power loss

Specifications

Amperage Rating:	550 A
Body Size:	150 mm L x 76 mm W x 88 mm H
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Terminal Type:	DIN 43 620 Blade
Voltage Rating:	690 V
