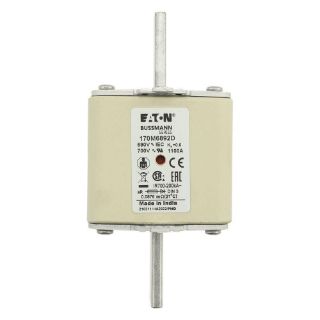

Actual Product May Vary From Image

170M6892D BSF

Name: 170M6892D BSF
Brand: Bussmann
SKU: 170M6892D BSF
Availability: OutOfStock

Bussmann 170M6892D Type T High Speed Square Body Fuse, 1100 A, 690 VAC, 200 kAIC Interrupt, Class: AR, Square Body

Manufacturer: Bussmann

Manufacturer part number: 170M6892D

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type T

Description

Bussmann High Speed Square Body Fuse, Type T, Series: 170M, Indicating/Non-Indicating: Indicating, 1100 A, 690 VAC, 200 kAIC Interrupt, Class: AR, Din 43 620 Blade Terminal, Stud Mount, Square Body Type, 150 mm L x 76 mm W x 88 mm H Body Size

Application

Critical Power, Electrical Assemblies and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter Applications

Standards

CE Certified | CSA Class File No. 1422-30 | IEC 60269 Part 4 | UL Recognized | UL File No. E125085, JFHR2 Recognized

Features

Excellent DC performance
Low arc voltage and low energy let-through
Low wattage loss
Superior cycling capability
Square body DIN 43620 blade style high speed fuse
Dual indicator fuse

Specifications

Amperage Rating:	1100 A
Body Size:	150 mm L x 76 mm W x 88 mm H
Body Type:	Square
Class:	AR
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	Stud
Series:	170M
Terminal Type:	Din 43 620 Blade
Voltage Rating:	690 VAC
