170M7035 BSF

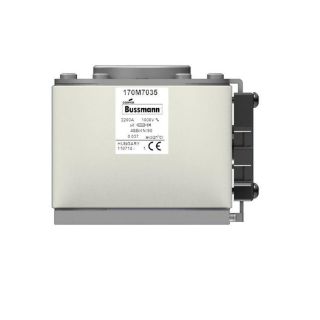

Picture of 170M7035 BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
170M7035
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7,008.84 / EA

Description

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 2200 A, 125 kA Interrupt, Class: Class AR, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters

Standards

IEC Rated | UL Listed | CE Certified

Features

  • Package Type: Standard
  • Watt Losses: 280 W
  • Clearing (I2T): Clearing at 1000V: 12000000
  • Connection Type: Din 43 to 620 Blade End x Din 43 to 620 Blade End
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Length: 5.433 in
  • Pre Arc (I2T): 2000000
  • Height: 2.087 in

Specifications

Amperage Rating:2200 A
Body Type:Square
Class:Class AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:125 kA
