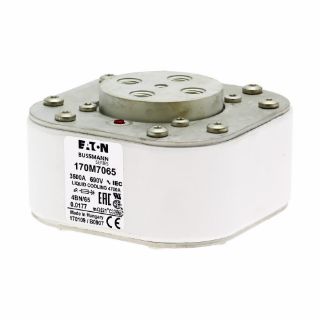

Picture of 170M7065 BSF
Actual Product May Vary From Image

170M7065 BSF

Bussmann 170M7065 Semiconductor Fuse, 3500 A, 200 kA Interrupt, Class: Class AR, Square Body
Manufacturer: Bussmann
Manufacturer part number: 170M7065
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 3500 A, 200 kA Interrupt, Class: Class AR, Flush Mount, Square Body Type

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters

Standards

IEC Certified | CE Certified | UL Listed

Features

  • Package Type: Standard
  • Watt Losses: 325 W
  • Clearing (I2T): Clearing at 660V: 22000000
  • Width: 0.315 in
  • Weight: 1.6456 lbs
  • Length: 5.433 in
  • Pre Arc (I2T): 3250000
  • Height: 2.087 in
  • Temperature Rating: 60 Degrees C

Specifications

Amperage Rating:3500 A
Body Type:Square
Class:Class AR
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:Flush
