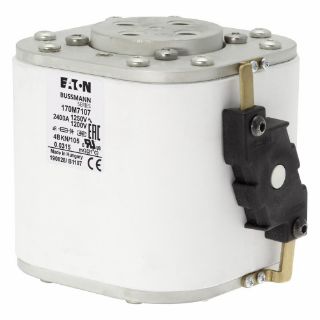

Picture of 170M7107 BSF
Actual Product May Vary From Image

170M7107 BSF

Bussmann 170M7107 Semiconductor Fuse, 2400 A, 1000 VAC, 125 kA Interrupt, Class: Class AR
Manufacturer: Bussmann
Manufacturer part number: 170M7107
Availability: Expected Leadtime 31 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
Price on Request

Product Details

Brand Name

Bussmann

Description

Bussmann Semiconductor Fuse, Non-Indicating, 2400 A, 1000 VAC, 125 kA Interrupt, Class: Class AR, Flush Mount

Application

DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications

Standards

UL Listed | CE Certified | IEC 60269

Features

  • Package Type: Standard
  • Watt Losses: 255 W
  • Clearing (I2T): Clearing at 1250V: 25000000
  • Width: 4 in
  • Weight: 6.421 lbs
  • Length: 4.75 in
  • Pre Arc (I2T): 4000000
  • Height: 4.5 in

Specifications

Amperage Rating:2400 A
Class:Class AR
Country of Origin:HU
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:125 kA
Mounting Type:Flush
Voltage Rating:1000 VAC
