Actual Product May Vary From Image

171315.60 LEE

Name: 171315.60 LEE
Brand: Leeson Electric
SKU: 171315.60 LEE
Availability: OutOfStock

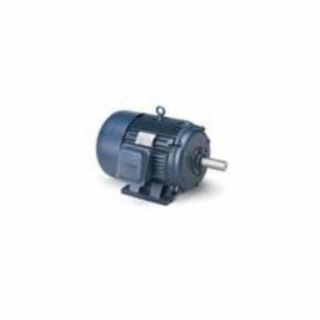

LEESON® 171315.60 Type TF Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 125 hp, 150 hp, 460 VAC, 50/60 Hz, 440 Frame, 1200 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 171315.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous-Duty

Description

LEESON® AC Motor, Type TF Continuous-Duty, Compressor Motors, Fan & Blower Motors Application, 6-Pole, B NEMA Design Special Features, 125 hp, 150 hp, 460 VAC, 230 A, 50/60 Hz Frequency, 1200 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 440 Frame, 3-3/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 48 in L x 29.09 in W x 24.78 in H Dimensions

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed

Features

6-Pole, B NEMA Design

Specifications

Amperage Rating:	230 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	48 in L x 29.09 in W x 24.78 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	440
Frequency Rating:	50/60 Hz
Horsepower:	125 hp, 150 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	3-3/8 in Dia
Speed:	1200 rpm
Temperature Rating:	40 deg C
Voltage Rating:	460 VAC
