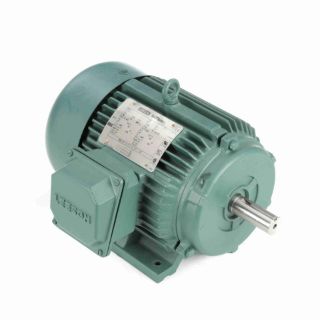

Actual Product May Vary From Image

171624.60 LEE

Name: 171624.60 LEE
Brand: Leeson Electric
SKU: 171624.60 LEE
Price: 1,007.24 USD
Availability: OutOfStock

LEESON® 171624.60 2-Pole Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 575 VAC, 60 Hz, 3 ph Phase, 182T Frame, 3520 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 171624.60

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,007.24

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous-Duty

Description

LEESON® AC Motor, 2-Pole Continuous-Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 3 hp, 575 VAC, 3 A, 60 Hz Frequency, 3 ph ph, 3520 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182T Frame, 1.13 in Dia x 2.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 16.14 in L x 12.13 in W x 10.68 in H Dimensions

Application

Pump, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
Squirrel cage inverter rated

Specifications

Amperage Rating:	3 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	CN
Dimensions:	16.14 in L x 12.13 in W x 10.68 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182T
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.13 in Dia x 2.75 in L
Speed:	3520 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	575 VAC
